ITS integrators
To add presence, approach or speed detection into dynamic signage, road safety, intersections and control systems.
u FMCW · 60 GHz · ITS Detection
Radar sensor to detect traffic and trigger systems in real time
uRAD Smart Radar Sensor detects presence, approach, speed, distance and direction of vehicles, pedestrians or cyclists. It sends real-time events over RS-485 or UART and can trigger panels, beacons or controllers with the Standard version.
Camera-free detection with no roadworks, ready to integrate into ITS systems, OEM electronics and road-safety applications.
Describe what you need to detect, which system should react and which interface your controller uses.
Detection and activation applications on public roads
Choose by the outcome you need
Do you need to detect and act, or to analyze traffic?
You are here
Another uRAD Solution
uRAD Smart Radar Sensor
Detect an event and trigger a system
Choose Smart Radar Sensor when you need to detect presence, approach, direction or speed and send a real-time signal to a panel, beacon, PLC, microcontroller or traffic-light controller.
- Real-time response
- integration
- Actuation outputs in Standard
- OEM integration
- No dashboard or historical data of its own
You are viewing Smart Radar Sensor
uRAD Smart Traffic solution
Count, store and analyze movements
Choose Smart Traffic when you need traffic counting, classification, historical data, statistics, reports, cloud visualization or data integration for mobility studies. It is uRAD´s complete traffic-counting and analytics solution.
- Counting and classification
- Historical data
- Statistics and visualization
- Data export and integration
- Traffic studies
See uRAD Smart Traffic
Local, real-time detection
From detected motion to system action
The radar processes detection on the device itself and delivers an event or instant telemetry. The final integration decides which element should react.
-
Step 01
Detects
The radar identifies a target within the configured zone without capturing images.
-
Step 02
Measures
It computes parameters such as distance, speed, direction and approach.
-
Step 03
Evaluates
The integration applies a zone, condition or threshold defined for the application.
-
Step 04
Communicates
It sends the event or instant telemetry over RS-485 or UART.
-
Step 05
Triggers
The external controller or the Standard version's outputs activate a beacon, panel or warning.
Integration profile
Designed to integrate radar detection into your own systems
OEM manufacturers
To integrate FMCW radar into light panels, electronic equipment, controllers, dataloggers or your own products.
Engineering firms & infrastructure operators
To deploy camera-free detection applications and connect the sensor to a PLC, control cabinet or existing infrastructure.
Events & instant telemetry
Information ready for your system to make a decision
The sensor processes detection locally and sends parameters or instant events to the integrator's controller. The final application decides how to use the information and which element should be triggered.
Presence in the detection zone
Distance to target
Speed and approach
Direction of movement
Pass or detection event
Output activation (Standard)
Hardware options
Choose the right integration format
Compare Smart Radar Sensor Lite and Standard by power supply, enclosure, actuation outputs and deployment method.
Compact integration
uRAD Smart Radar Lite
Compact module for OEM integration
Designed for equipment that already has its own power supply, enclosure, electronics and controller.
- 5 V DC power supply
- RS-485 or UART
- Local Wi-Fi configuration
- Compact form factor
- No industrial enclosure
- No direct actuation outputs
Modelo industrial
uRAD Smart Radar Standard
Industrial sensor for field installation
Designed to connect the radar directly to an ITS installation, a control cabinet or a signage system.
- 8 to 42 V DC power supply
- RS-485 or UART
- IP66 enclosure
- Two opto-isolated GPIO outputs
- Mounting on pole, mast or infrastructure
- Ready for actuation applications
| Feature | Lite version | Standard version |
|---|---|---|
| Power | 5 V DC | 8–42 V DC (wide range) |
| Communication | RS-485 / UART | RS-485 / UART |
| Actuation outputs | Not available | 2 opto-isolated GPIO |
| Protection | Internal module (no IP rating) | IP66 industrial enclosure |
| Integration format | Compact module for board / MCU | Protected field unit |
| Recommended use | OEM integration in your own equipment | Direct install on mast, pole or cabinet |
Use cases
Detect to act: road-safety applications
Cada aplicación describe qué detecta el radar y qué sistema reacciona.
Detect pedestrians and trigger warning beacons
The radar detects presence or approach in the configured zone and can send a signal to beacons, LED panels or warning systems.
Ver detección radar para pasos de peatones →
Speed display signs
Measure speed and trigger a feedback sign
The sensor measures approach speed and reports the value or event to the controller responsible for displaying the corresponding message.
Validate This Application
Junctions & blind spots
Detect traffic in conflict areas
The radar detects a vehicle, cyclist or user approaching an intersection and sends an event to the warning or control system.
Validate This Application

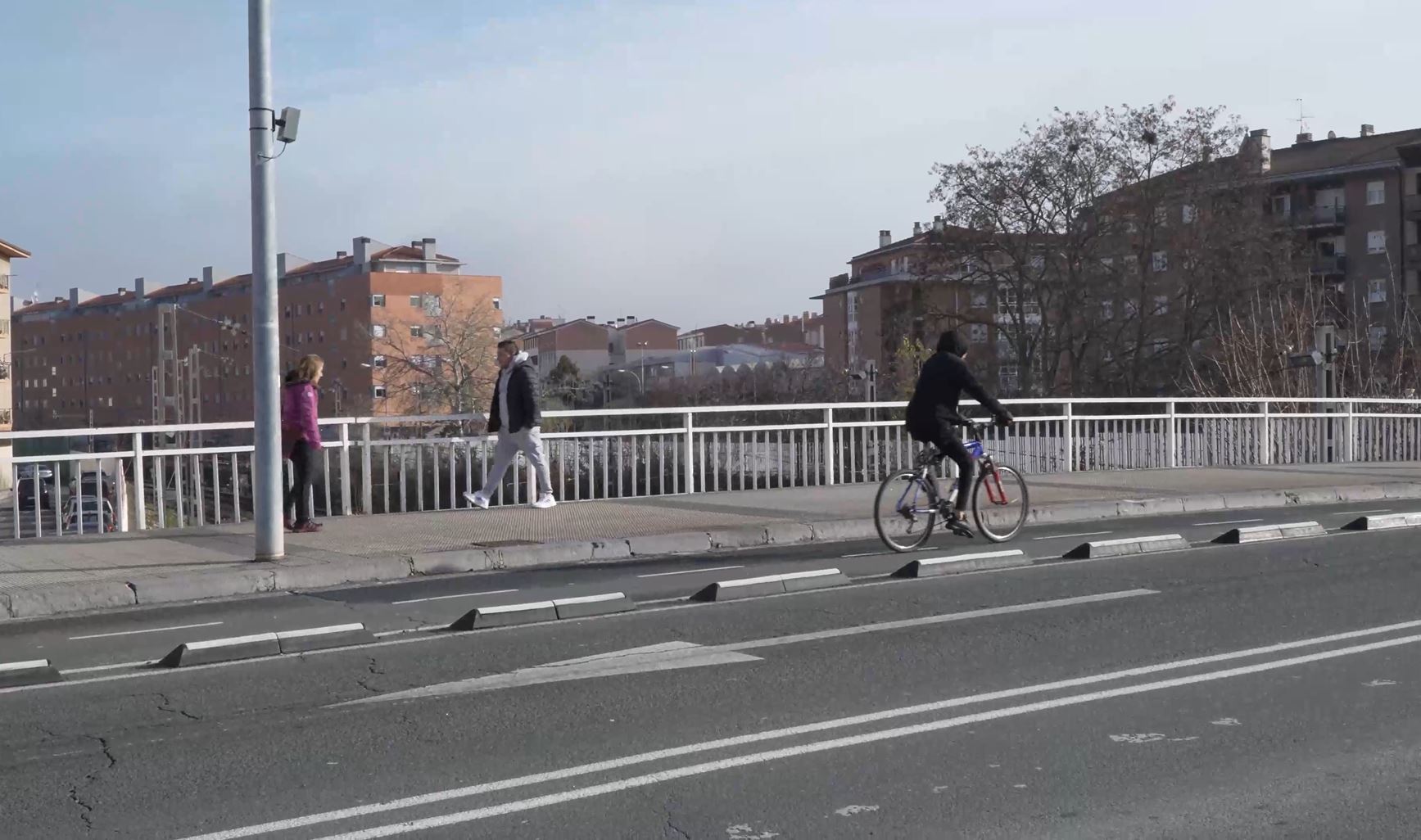

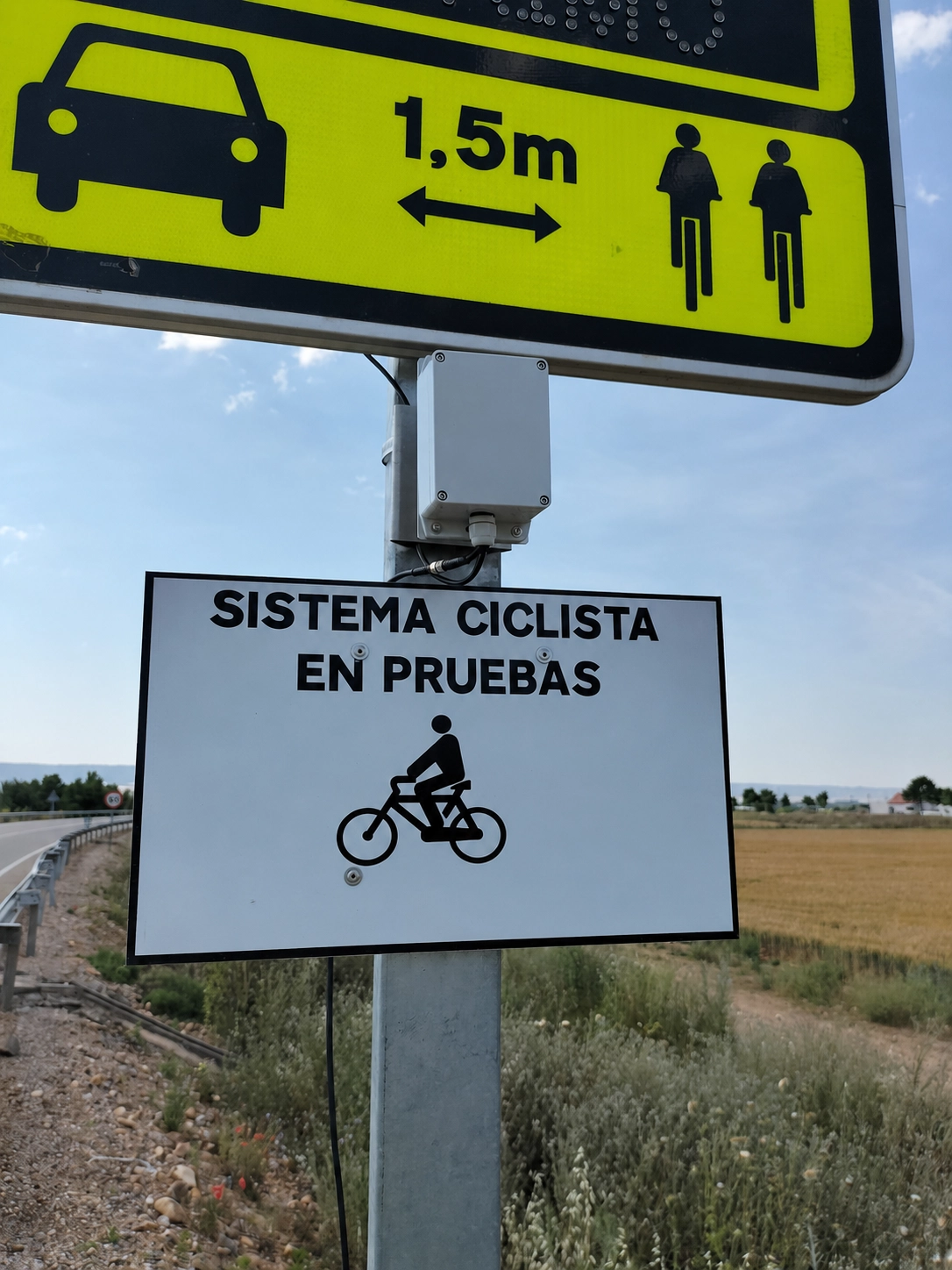

Detect cyclists and trigger preventive signage
The sensor identifies the approach of bikes or PMVs and can trigger a signal aimed at drivers or other road users.
Validate This Application
Vehicle Detection
Detect vehicle presence, pass or approach
Integrate vehicle detection into accesses, lanes, industrial areas, panels and ITS systems via serial communication or actuation outputs.
Validate Vehicle Detection →
Technical advantages
Radar detection ready to run in the field
An easy-to-integrate detection sensor with low maintenance and outdoor operation, with no image capture.
Image-free detection
Detects motion and presence without recording people, vehicles or license plates.
Speed and distance
Measures distance, approach and speed within the system's operating range.
Outdoor operation
Radar technology is less dependent on lighting and ready for outdoor conditions.
Serial integration
Communication over RS-485 or UART to connect the sensor to external electronics.
Local actuation
The Standard version includes two opto-isolated outputs for activation applications.
OEM & industrial formats
Available as a compact module or as a protected field unit.
Engineering & documentation
60 GHz FMCW radar specifications with RS-485 output
Technical data to evaluate the sensor's hardware integration and serial communication.
FMCW 60–64 GHz
100 m máx.
180 km/h
RS-485 / UART
IP66
RF frequency60 – 64 GHz (industrial band)
Maximum range100 m
Field of view160°
Maximum speed180 km/h
CommunicationRS-485 / UART · 115200 bps
Power5 V DC (Lite) · 8–42 V DC (Standard)
Actuation outputs2 opto-isolated GPIO (Standard)
ProcessorXtensa dual-core 32 bits
ProtectionIP66 (Standard)
Operating temperature−20 °C to +80 °C
Dimensions (Lite)82 × 80 × 55 mm
Industrial compliance & warranty
CE marking and compliance with the RoHS Directive. See the official documentation for the detail of applicable standards and the current warranty terms.
Standard Datasheet
Specifications, 8-42 V power supply, outputs and pinout.
Standard user manual
Commissioning, serial configuration commands and detection packet structure.
Lite Datasheet
Compact dimensions, 5 V integration and pinout.
Lite user manual
Configuration, serial protocol and detection frames for OEM integration.
Counting & analytics
Need to store and analyze every detection?
Smart Radar Sensor is designed to detect and communicate events in real time within your own integration. If you need a complete solution for traffic counting, classification, historical data, visualization and data exploitation, use uRAD Smart Traffic.
uRAD ecosystem
Related products
Frequently asked questions
Detection, integration and product choice
Answers written for ITS integrators, OEM manufacturers and technical teams evaluating the sensor for a real project.
What can uRAD Smart Radar Sensor detect?
It detects presence and approach of vehicles, pedestrians or cyclists within a configured zone, and measures parameters such as distance, speed and direction of movement. It delivers that data or events in real time so an external system can react.
Can it directly trigger a beacon, sign or panel?
Yes. The Standard version includes two opto-isolated outputs that can trigger external elements based on detected events. In more complex integrations, the event is sent over RS-485 or UART to a controller that manages the actuation.
How does it connect to a PLC, microcontroller or ITS controller?
Through RS-485 or UART serial communication. The sensor sends parameters or instant events that the PLC, microcontroller, datalogger or traffic-light controller interprets according to the application logic.
What is the difference between the Lite and Standard versions?
Lite is a compact 5 V module for OEM integration in equipment that already has its own enclosure and electronics. Standard is an industrial unit with an IP66 enclosure, 8 to 42 V power supply and two opto-isolated outputs for direct field installation.
What is the difference between Smart Radar Sensor and Smart Traffic?
Smart Radar Sensor detects a target and communicates a real-time event so another system can act. uRAD Smart Traffic solution is the complete solution to count, classify, store and analyze traffic movements.
Is it suitable for smart pedestrian crossings?
Yes. The radar detects the presence or approach of pedestrians in the configured zone and can trigger beacons, LED panels or warning systems through the Standard version's outputs or an external controller.
Can it be used in speed display signs?
Yes. It measures approach speed and reports the value or event to the controller responsible for showing the message on a feedback sign or light display.
Does it work in rain, fog or low light?
Because it does not rely on a visible image, the radar remains useful in conditions where cameras can be affected, such as low light, rain or fog. The Standard version is aimed at outdoor deployments with an IP66 enclosure.
Can I request a unit for a proof of concept?
Yes. For qualified projects we can evaluate a proof of concept with evaluation hardware. It helps to state the use case, the location, the planned integration and the validation criteria to choose between Lite and Standard.
Technical validation of your application
Tell us what you need to detect and which system should react
An engineer will review the scenario, the distance, the target type, the installation and the required interfaces to recommend the right version and configuration.
- Technical review of your case.
- Recommendation between Lite and Standard.
- Assessment of RS-485, UART or actuation outputs.
- Quote for a pilot or a full deployment.
- Direct integration support.
